Shielded Ribbon Cable-3 Leads Flat Cable For ECG Leads
Manufacturing low-profile Wearable Holter monitors and patching telemetry networks demands elite structural flexibility and absolute motion-artifact suppression. As an ISO 13485 certified medical cable pioneer, Shen Zhen Yong Qiang Fu Industry Co.,Ltd. custom-extrude high-performance shielded ribbon cables and 3-lead flat cables on raw wholesale master spools. Our specialized configuration (Model: FLAT-EC203S) integrates an independent high-density spiraling shielding matrix wrapped inside a bio-compatible, ultra-soft medical-grade TPU jacket, securing flat, lossless data streams for patient monitoring hardware.
technical specification
| Items | Specification | ||
| Products name | Shield Ribbon Cable for ECG | ||
| Model | EC203S | ||

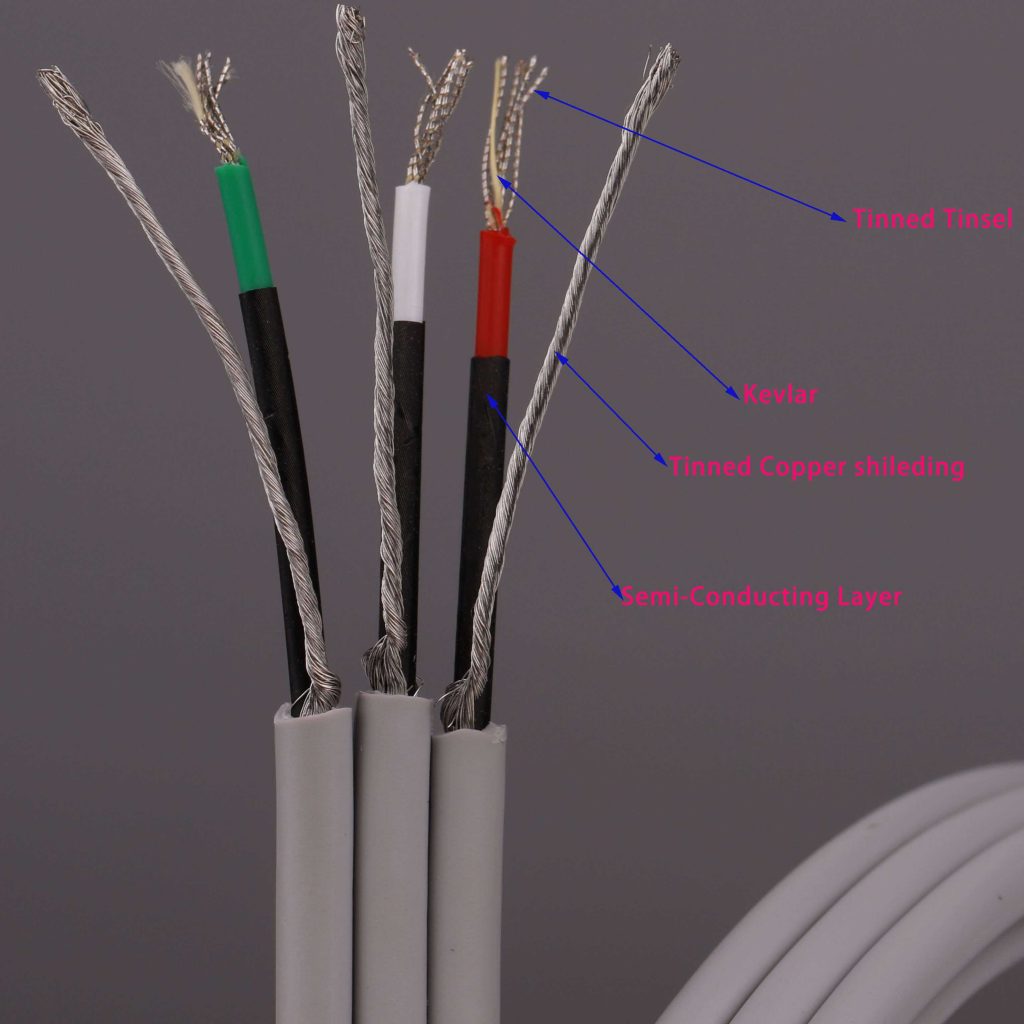

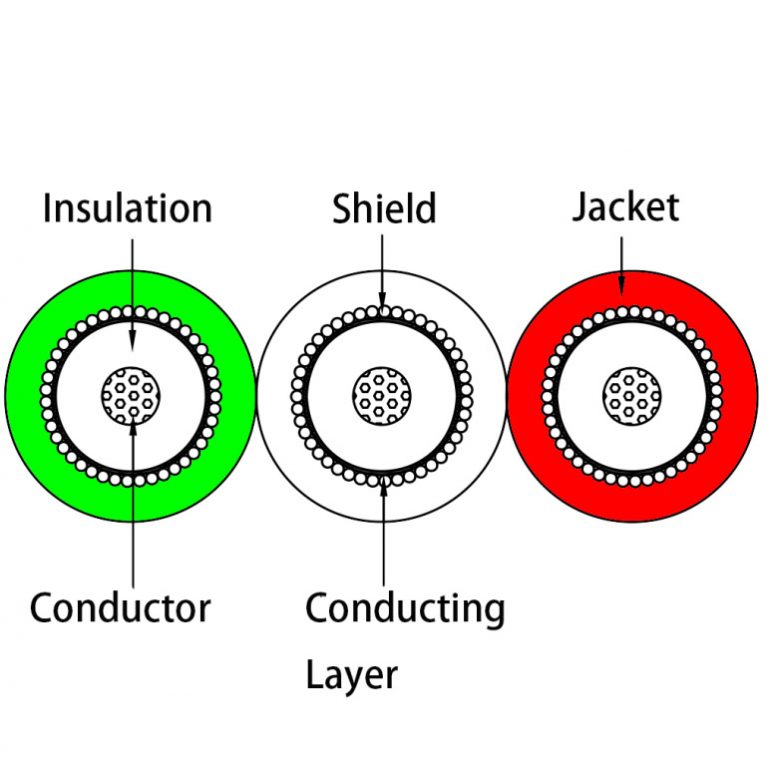

| Conductor | Material | Tinned or Silvered Tinsel+KEVLAR | |
| Specification | 7/0.23+200D KEVLAR | ||
| Insulation | Material | HDPE | |
| Nom.Thickness | 0.34 | ||
| Nom.O.D. | ø01.40士0.05 | ||
| Colour | White/Black/Red | ||
| Conducting Layer | Material | Semiconductive PVC | |
| Nom.Thickness | 0.1 | ||
| Specification | ø1.6士0.08 | ||
| Colour | Black | ||
| Shield | Material | Tinned copper | |
| Specification | 50士3/0.10TC | ||
| Coverage | >90% | ||
| Jacket | Material | TPU | |
| Nom.Thickness | 0.72 | ||
| Nom.O.D. | ø3.2士0.10/9.6士0.20 | ||
| Colour | Matte Gray | ||
💡 Technical Advantages of EC203S Series:
Generic industrial ribbon cables suffer from heavy inter-channel cross-talk and stiff sleeve splitting during long-term clinical patient attachment. Our facility bypasses these design limits:
* Ultra-Slim Shielded Ribbon Cable Geometry: The parallel 3-lead flat cable configuration ensures a zero-torque, low-profile layout that conforms perfectly to the patient’s body contour, drastically reducing skin drag and motion artifacts.
* Anti-Cross-Talk Spiraling Shield (≥90% Coverage): Each internal core channel features an independent, high-density tinned soft copper spiral shield. This customized dual Faraday cage structure blocks internal capacitive coupling and external ambient EMI pulses seamlessly.
* Precision Tear-Resistant Sleeve: The outer medical TPU formulation is dynamically cross-linked, allowing the 3 channels to be separated or tinned smoothly without tearing the internal insulation matrices during connector overmoulding.
