10 leads Flat Ribbon shielded raw medical flat ECG Cable EC210S-002

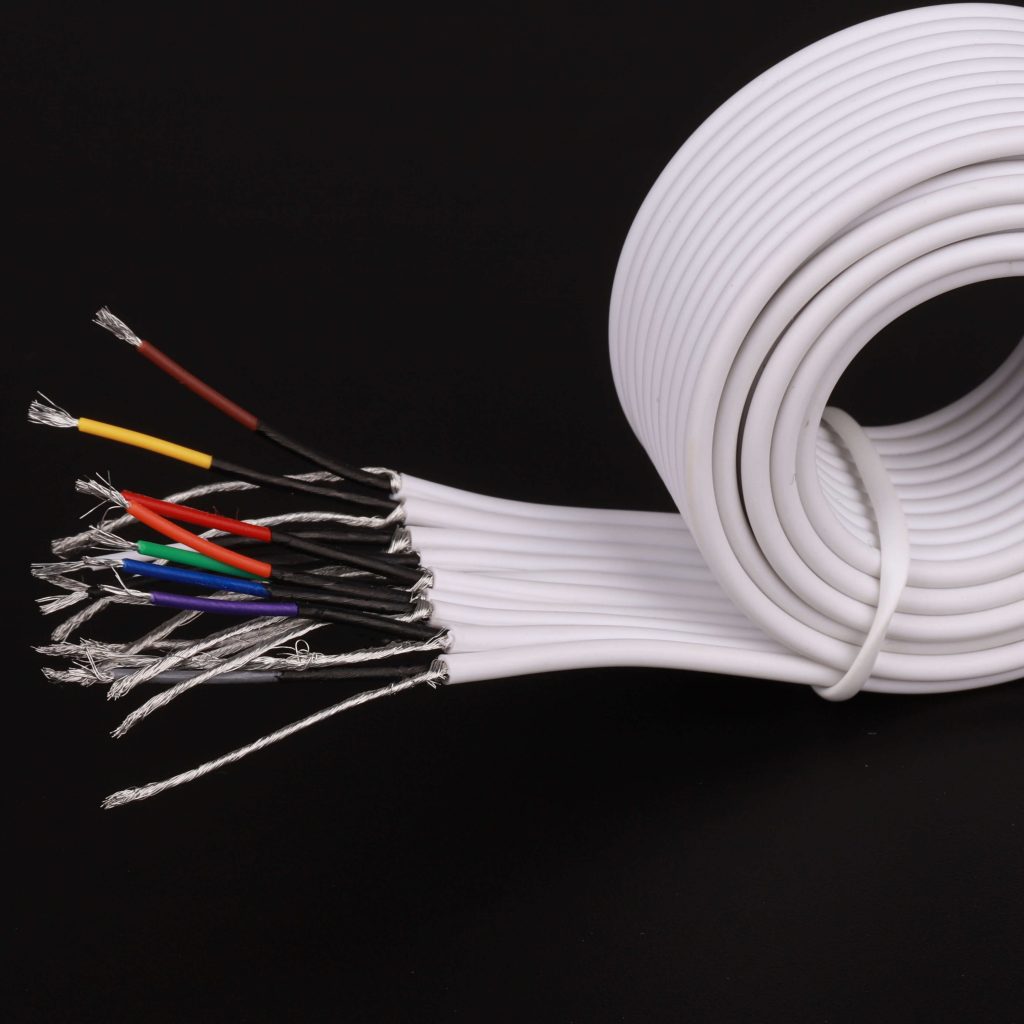

ECG cable EC210S-002
ECG cable EC210S-002

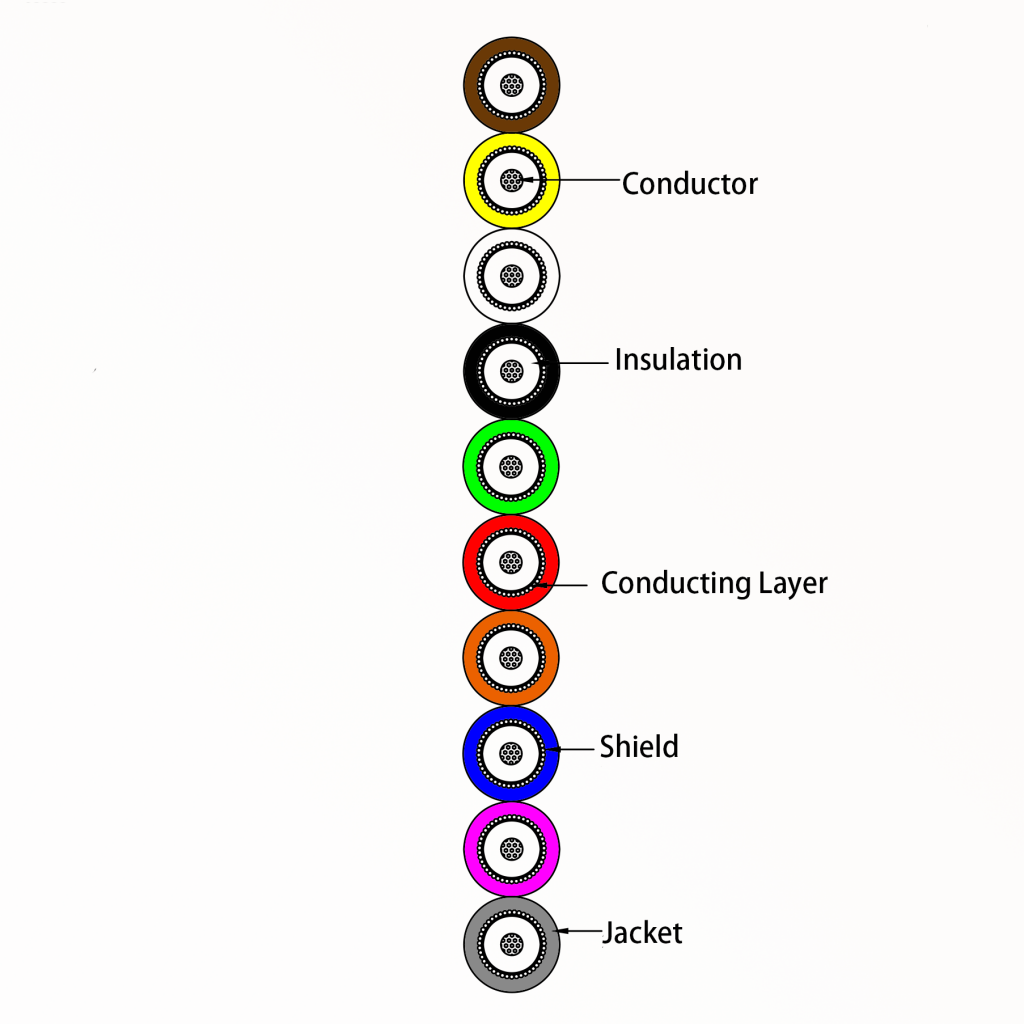

ECG cable EC210S-002 cutting diagram
ECG cable EC210S-002 cutting diagram





technical specification

Style 2EC210S-002
ConductorMaterialTinned copper
Specification40/0.05TC
InsulationMaterialLDPE
Nom.Thickness0.3
Nom.O.D.ø0.95士0.05
ColourWhite/Green/Black/Red/Brown/Blue/Purple/Gray/Orange/Yellow
Conducting LayerMaterialSemiconductive PVC
Nom.Thickness0.1
Specificationø1.15士0.08
ColourBlack
ShieldMaterialTinned copper
Specification43士3/0.08TC
Coverage>90%
JacketMaterialTPU
Nom.Thickness0.27
Nom.O.D.ø3.0士0.10*20.5士0.5
ColourGray(7S26)
