10 LEAD ECG CABLE | SHIELDED RAW MEDICAL cable EC210S-003

OD 5.4mm Shielded raw patient cable- 10 lead ECG cable.AHA/AAMI color coding.TPU5040 Gray jacket.Regular stock available.Custom manufacture 7-10 Day lead time

10 lead ECG cable EC210S-003
ECG cable EC210S-003

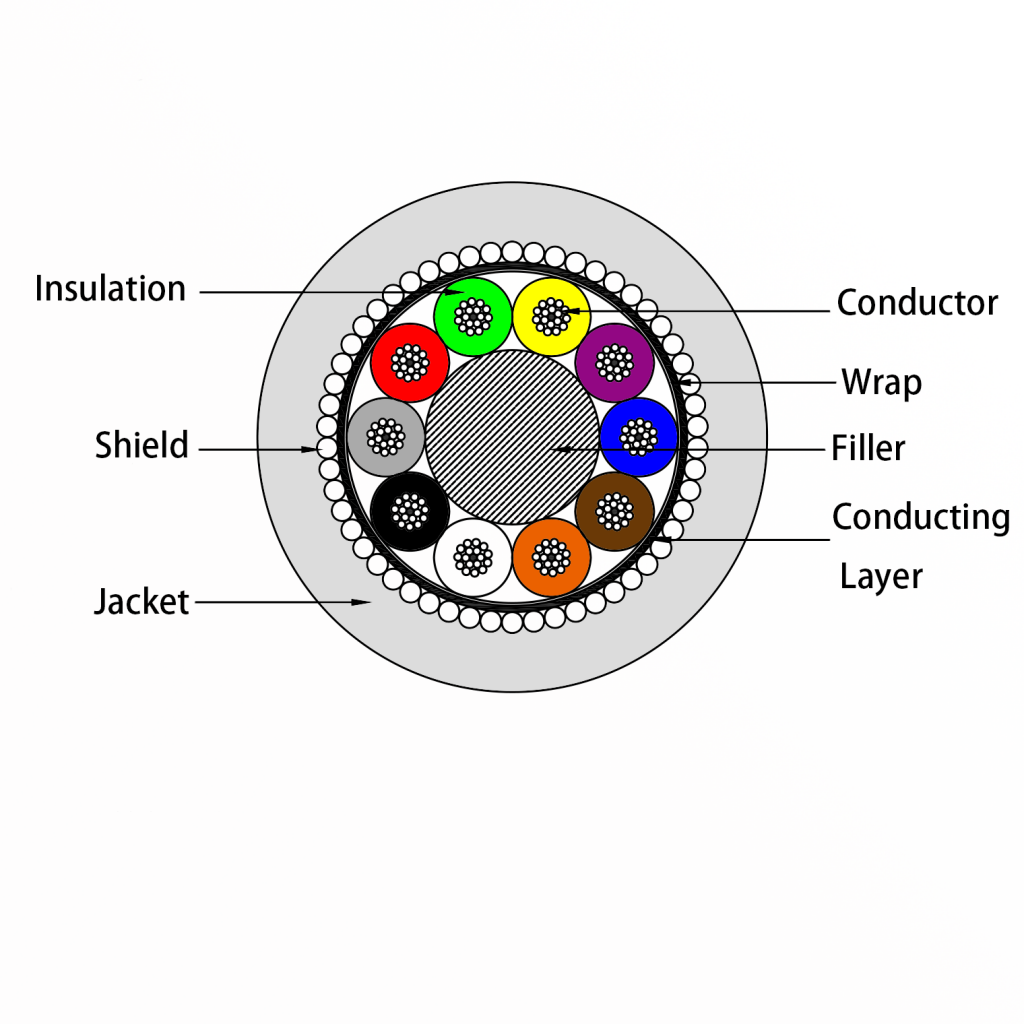

EC210S-003 cutting diagram
EC210S-003 cutting diagram





technical specification

Style 3EC210S-003
ConductorMaterialBared copper+KEVLAR
Specification11/0.08BC+200D KEVLAR
InsulationMaterialHDPE
Nom.Thickness0.22
Nom.O.D.ø0.75士0.05
ColourWhite/Green/Black/Red/Brown/Blue/Purple/Gray/Orange/Yellow
Conducting LayerMaterialSemiconductive PVC
Nom.Thickness0.21
Specificationø3.6士0.08
ColourBlack
WrapMaterialPTFE Tape
FillerMaterialContton Thread
ShieldMaterialTinned copper
Specification85士5/0.10TC
Coverage>90%
JacketMaterialTPU (5040)
Nom.Thickness0.8
Nom.O.D.ø5.4士0.15
ColourGray(7KL7)
