UL 2725 Computer cables
- Applications:
- Used for mouse, TV game, instrumentation and computer cables.

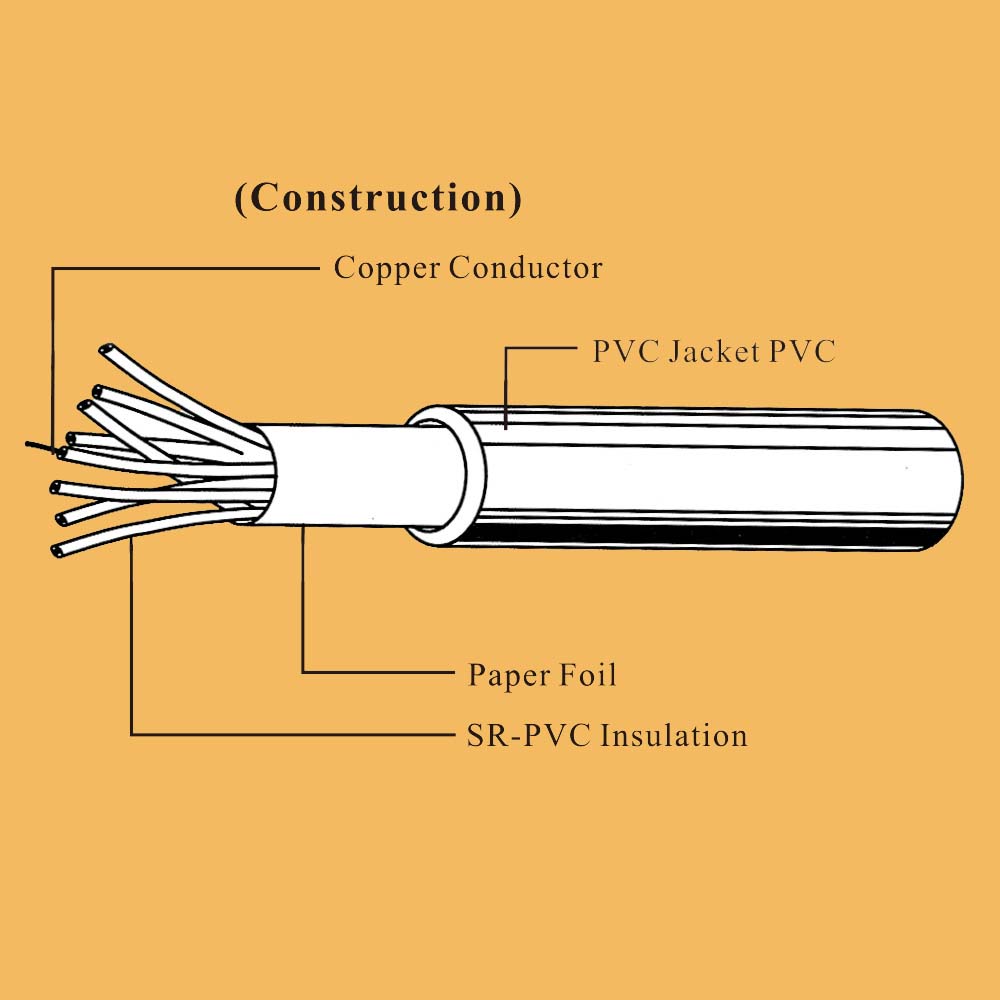

Product Description:
Tinned or bare stranded copper conductor.
Color-code semi-rigid PVC insulation
Cores cabled under tissue tape shield.
PVC jacketed multi-core computer and data transmission cable.
Standard or larger overall diameter is available.
Rated temperature:60°C. Rated voltage:30 volts.
Passes UL VW-1 vertical flame test.
Order information
28# and 26# AWG
| Part No. | Conductor | Insulation Thickness | No.of core | UL Jacket Min.Avg.Thickness | Overall Diameter | |
| No. | ||||||
| AWG | No./mm | mm | mm | mm | mm | |
| 272500003130228 | 28 | 7/0.127 | 0.23 | 2 | 0.23 | 2.50 |
| 272500003130328 | 3 | 3.20 | ||||
| 272500003130428 | 4 | 3.40 | ||||
| 272500003130528 | 5 | 3.60 | ||||
| 272500003130628 | 6 | 3.80 | ||||
| 272500003130828 | 8 | 5.00 | ||||
| 272500003130226 | 26 | 7/0.16 | 0.23 | 2 | 0.23 | 3.50 |
| 272500003130326 | 3 | 3.50 | ||||
| 272500003130426 | 4 | 4.00 | ||||
| 272500003130526 | 5 | 4.50 | ||||
| 272500003130626 | 6 | 4.80 | ||||
| 272500003130726 | 7 | 5.00 | ||||
| 272500003130826 | 8 | 5.00 | ||||
