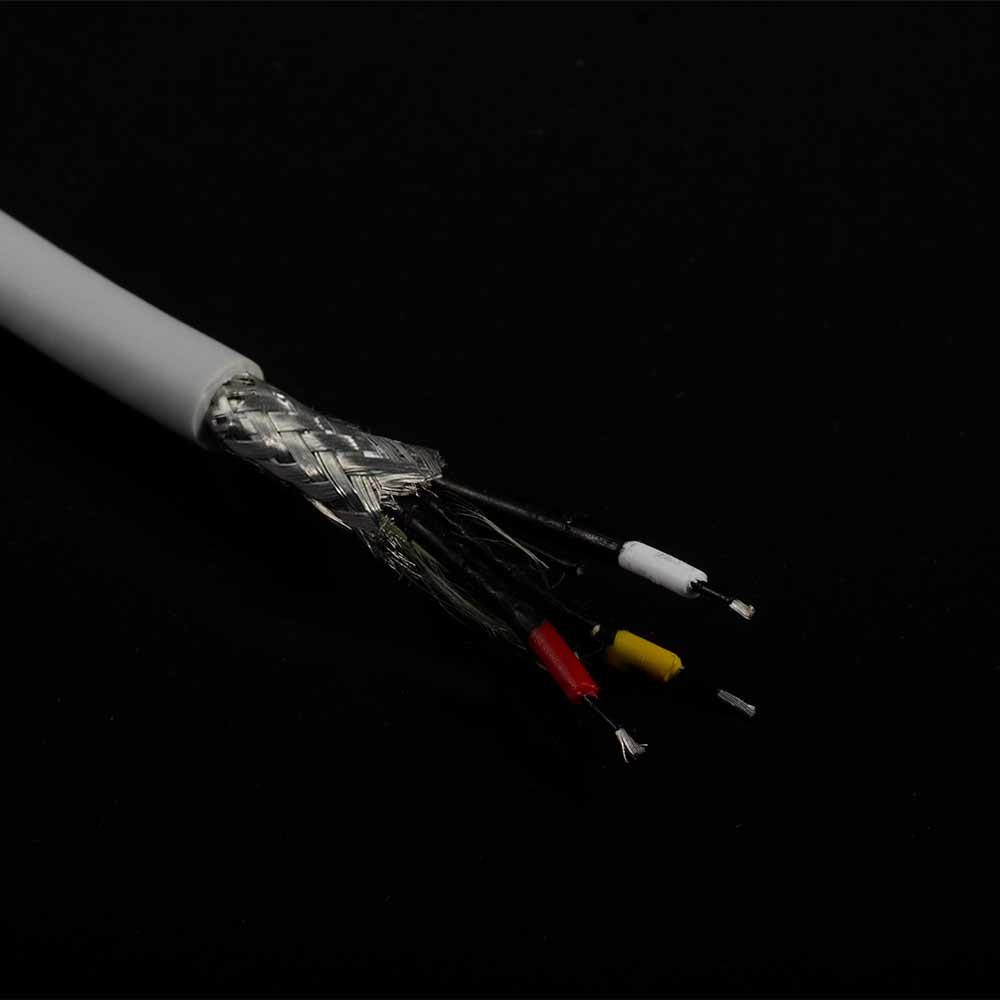

Round 3 Lead Ecg Cable With Special Structure EC203B
This 3 lead ecg cable has the following structure advantages to assure its performance perfectly meet EC 53 standard,specially the requirement for low noise
1)There is an extra conductive layer between the tinned copper and the insulation,so as to increase the friction between the insulation and conductor,it is a new way to decrease triboelectrical noise.And compared with Tinsel based structure,it is easy to strip.
2)In existing market,most 3 lead ecg cable are Flat ribbon cable,so for ecg cable assembly manufacturers,it need to make toolings for assembly.This cable is Round,and its OD is close to the OD of 5 lead ecg cable and 10 lead ecg cable,so the assembly factory do not need to make toolings.
|Conductor||Material||Tinned copper+Conductive layer|
|Conducting Layer||Material||Semiconductive PVC|
|Specification||16*12/0.05 TC Braiding shielding|
