Medical Grade 8 Wire 28 Awg Silicone Wire OD 4.4mm White

This White medical 28 awg silicone wire consists of 8 wire inner wire,and each wires is Silicone insulated .This make the cable feels much softer and flexibler than regular multicore silicone cable with FEP or PFA insulation.

8 wire 28AWG Silicone cable White Medical silicone cable
8 wire 28AWG Silicone cable White Medical silicone cable

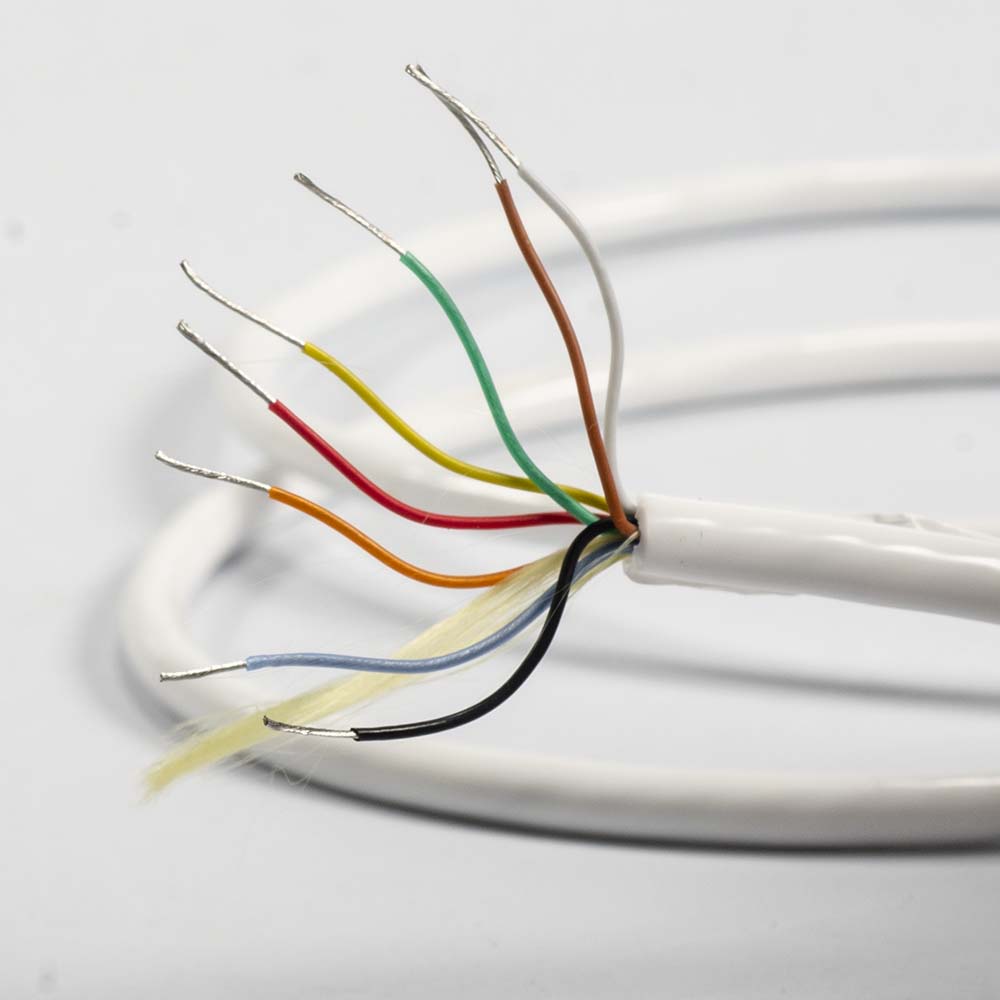

8 wire silicone insulated cable with silicone jacket





technical specification

ComponentComponent 1
CondoctorMaterialTINNED  COPPER+KEVLAR
AWG28
Construction19/0.08TC+200DKevlar
Pitchmm6±2
Stranded O.DREF:0.4
InsulationMaterialMedical silicone
NO of wire8C
O.D mm0.75±0.05
AVG. Thickness mm0.17
Min. Thickness mm0.14
Color1.RED 2.GREEN 3.BLACK 4.BLUE 5.YELLOW 6.WHITE
7.ORANGE 8.BROWN
FillerMaterialKevlar
CablingPitch mm60±10
Material8C+Filler
WrapperMaterialPTFE Tape
Overlap rate25%
JacketMaterialMedical silicone
O.D mm4.4±0.15
AVG. Thickness mm0.72
Min. Thickness mm0.64
ColorWhite
MarkN/A
