6 core shielded spo2 cable-Sp206B-001

6 core shielded spo2 cable
6 core shielded spo2 cable

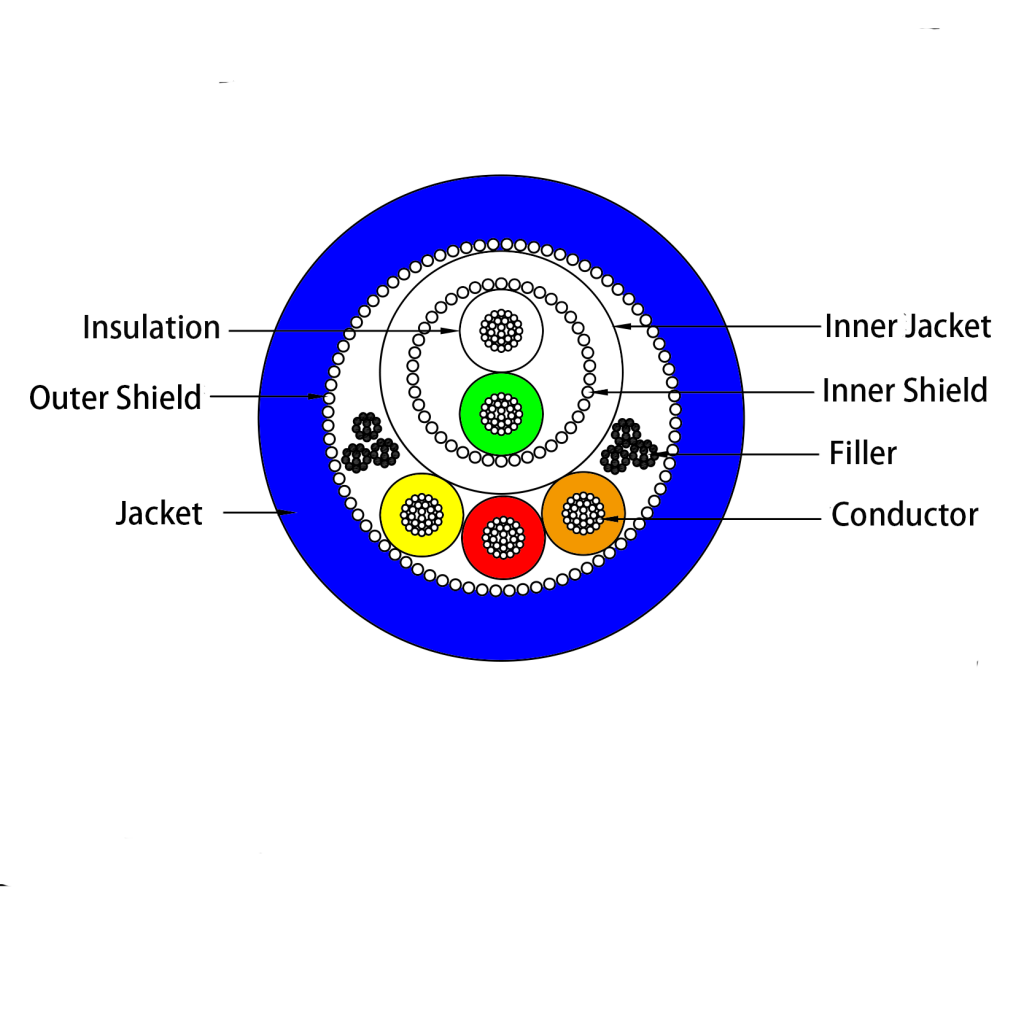

SP206B-001 cutting-diagram




Spo2 cable technical specification

Items Specification
Products name
ModelSP206B-001
Conductor MaterialTinned copperTinned copper
 Specification19/0.O8TSN士0.00819/0.O8TSN士0.008
 Insulation MaterialHDPEHDPE
 ColourWhite/GreenRed/Yellow/Orange/Blue
 Inner Shield MaterialTinned copper
 Specification55士3/0.08士0.008
 Coverage>95%
 Inner Jacket Material80A-PVC(Gray)
 Filler Materialkevlar
 Outer Shield MaterialTinned copper
 Specification16*8/0.08TC
 Coverage>90%
 Jacket MaterialTPU (5040)
 Nom.O.D.ø4.5士0.10
 ColourBlue(K5Q65)
