shielded Lan cable cat.5e
Applications:
Support various wiring constructions & transmission media, such as voice, digital, message, image & video frequency communication, etc. LAN
Remarks:
color code of 4 pairs
1.blue*white/blue 2.orange*white/orange 3.green*white/green 4.brown*white/brown
Product features
Rated temperature:60°C, 75°C
Rated voltage:300 volts.
Reference standard:UL 444, TIA/EIA 568B, ETL & 3P.
Solid or stranded copper conductor.
Color-Coded PE insulation.
Pass UL CMR and CSA FT4 Flame Test.
Electrical Properties :
DC-Resistance at 20°C Max. 9. 38 Ω/100M
DC-Resistance unbalance Max. 5%.
Impedance at 1-100MHz : 100+15%
Order information
| Type | Conductor (mm) | Insulation | Shield | Nom.OD |

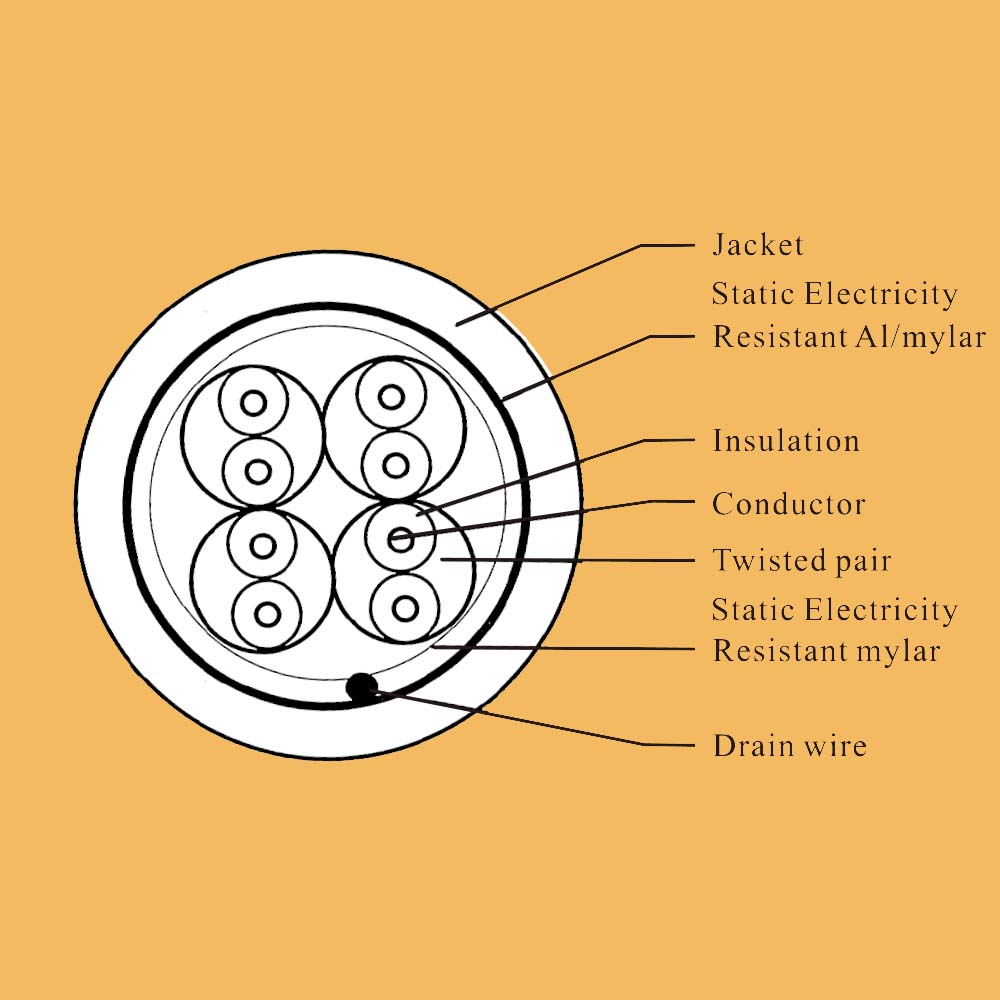

| Solid–FTP | 1/0.55 BA | PE | My + AL | 6.20mm |
| Stranded–FTP | 7/0.207 BA | PE | My + AL | 6.00mm |
| 7/0.165 BA | ||||

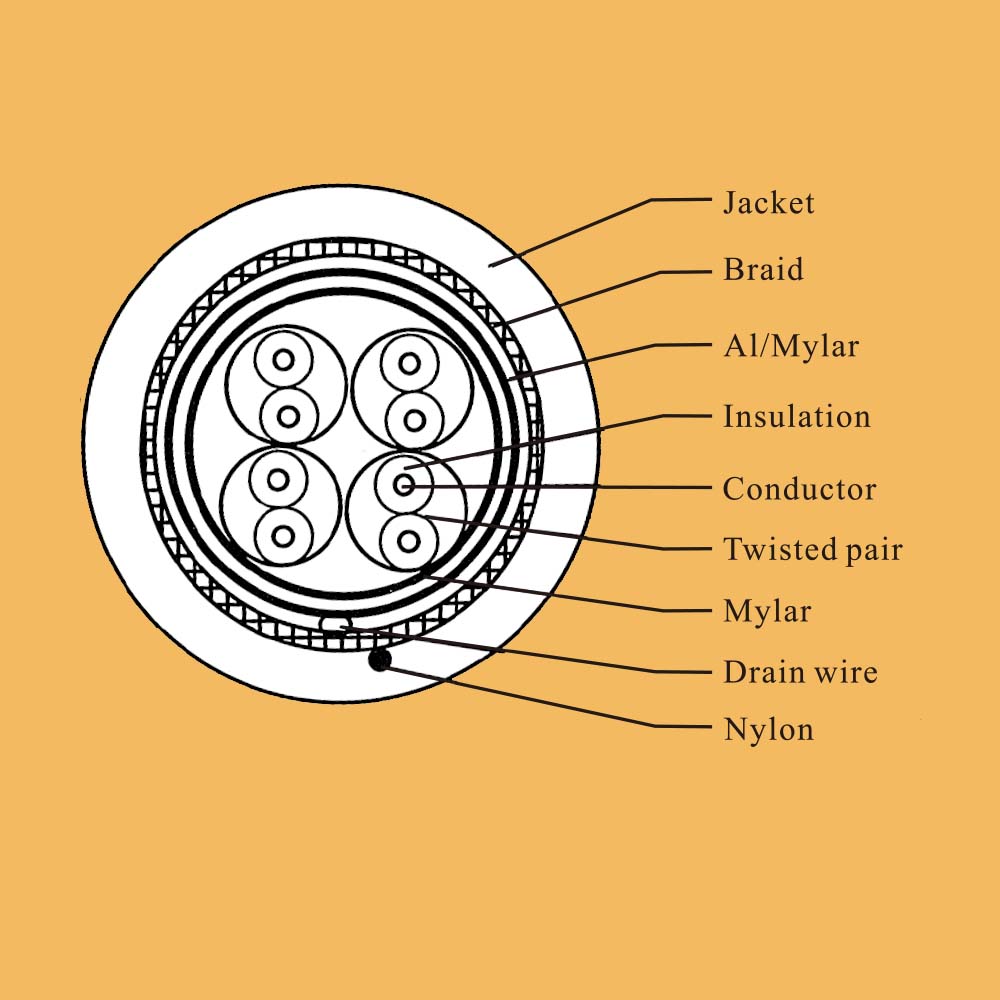

| Stranded–SFTP | 7/0.207 BA | PE | My + AL + B | 6.50mm |
| 7/0.165 BA | ||||
| Solid-SFTP | 1/0.58 BA | PE | My + AL + B | 7.10mm |
