7 Wire 27 AWG 2 Wire Coaxial+5 Wire Braided Shiled ECG Cable

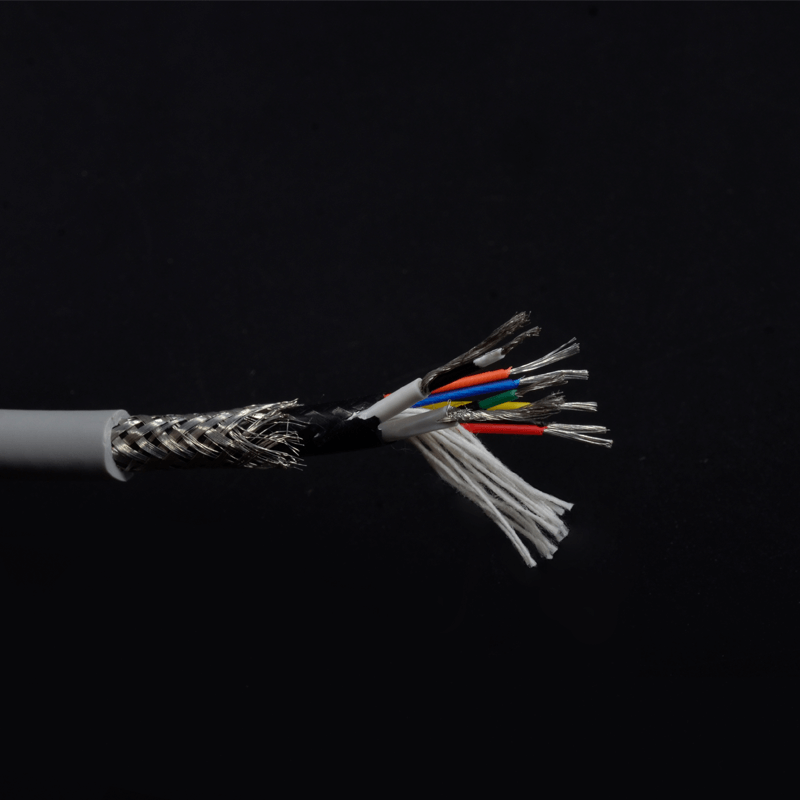

This 7 Wire 27 AWG includes 2 Wire Coaxial and 5 Wire ,with an overall Low Noise layer and outer Braided Shiled .It is mainly used in ECG Cable assemly .TPU Jacket and OD 6.0mm
technical specification
| Items | Specification | ||
| Products name | 27 AWG 2C+5C Double Shiled ECG Cable TPU Jacket OD 6.0 | ||
| Model | EC207B-006 | ||
| AWG | 27AWG | ||
| Conductor | Material | Tinned copper | Tinned copper |
| Specification | 19/0.08TC | 19/0.08TC | |
| Insulation | Material | HDPE | HDPE |
| Nom.Thickness | |||
| Nom.O.D. | Φ0.80±0.03mm | Φ0.80±0.03mm | |
| Colour | White/Green | Yellow/Red/Black/Blue/Orange | |
| Noise Layer | Material | Conductive PVC | |
| Nom.O.D. | Φ1.05±0.05mm | ||
| Spiral | Material | Tinned copper | |
| Nom.O.D. | 63±3/0.05TC | ||
| Inner Jacket | Material | PVC | |
| Nom.Thickness | |||
| Nom.O.D. | Φ1.65±0.05mm | ||
| Colour | White | ||
| Filler | Material | Cotton Thread | |
| Wrapper | Material | PTFE Tape | |
| Noise Layer 2 | Material | Conductive PVC | |
| Nom.O.D. | Φ4.00±0.10mm | ||
| Braid | Material | Tinned copper | |
| Specification | 16*10/0.08TC | ||
| Coverage | >95% | ||
| Jacket | Material | TPU (4766) | |
| Nom.Thickness | |||
| Nom.O.D. | Φ6.0±0.15mm | ||
| Colour | Gray | ||
