7 core Braided shielded spo2 cable-Sp207B-002

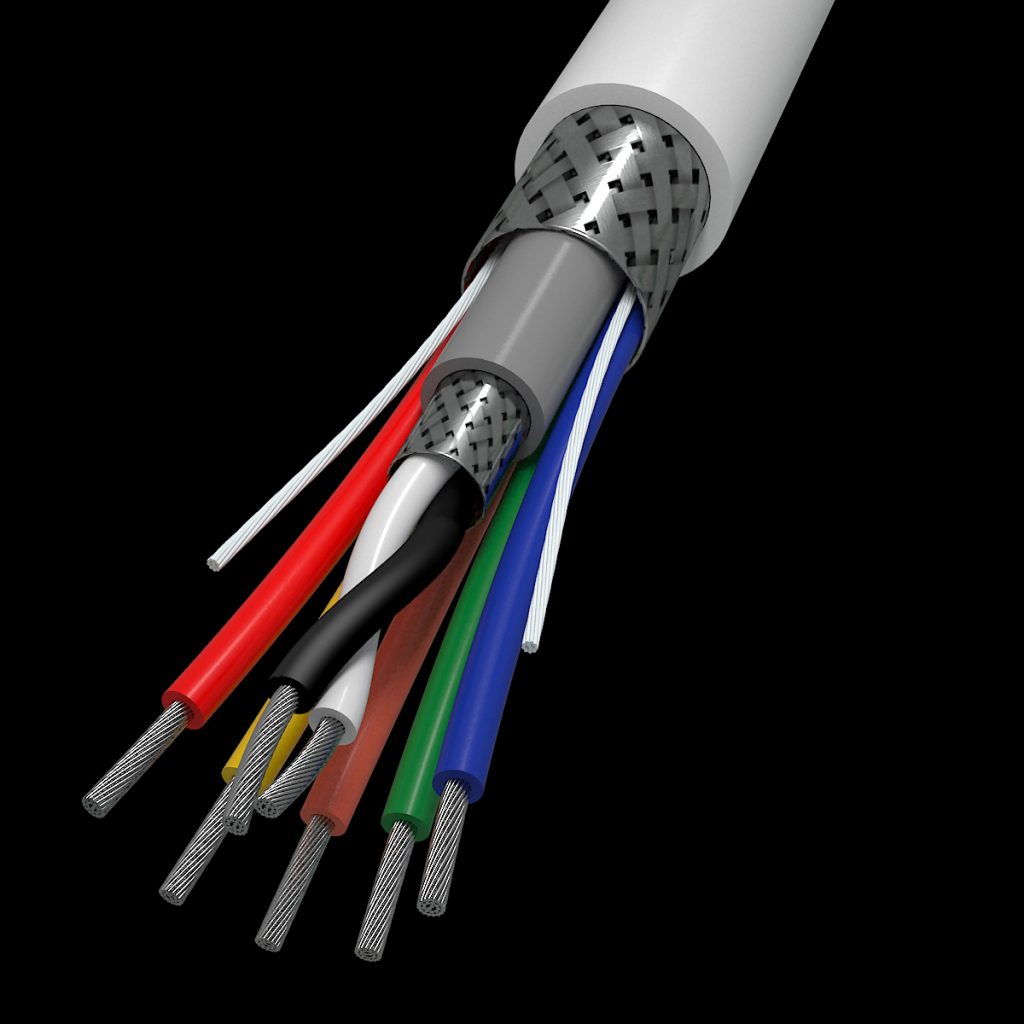

7 core spo2 cable SP207B-002
7 core spo2 cable SP207B-002
SP207B-002 cutting diagram
SP207B-002 cutting diagram
1P+5C Spo2 sensor cable Blue





Spo2 cable technical specification

Items  Specification
Products name
Model SP207B-002
Conductor  Material Tinned copper Tinned copper
 Specification 25/0.O5士0.008 25/0.O5士0.008
Insulation  Material HDPE HDPE
 Nom.Thickness 0.12 0.12
 Nom.O.D. ø0.60士0.05 ø0.6
 Colour White/Black Red/Yellow/Orange/Blue/Green
Inner Shield  Material Tinned copper
 Specification 42士3/0.08士0.008
 Coverage >95%
Inner Jacket  Material 80A-PVC(Gray)
 Nom.Thickness 0.14
 Specification ø1.75士0.10
Filler  Material Nylon
Outer Shield  Material Tinned copper
 Specification 16*10/0.08士0.008
 Coverage >90%
Jacket  Material TPU (4394)
 Nom.Thickness 0.24
 Nom.O.D. Gray one: ø4.00士0.10 :Blue one: ø3.9士0.10
 Colour Glossy(PANTONE COOL GRAY 2C)
