6 core shielded cable with air pipe Special Medical Purpose-OE206B

This special purpose 6 core shielded cable with ari pipe can transit signal,power,air or liquid at the same time. Medial grade  and fire proof Jacket wellprotect the inside components.

Also help Free design and OEM manufacture 6 core shielded cable without airpipe at a Low MoQ.

OE206B
Medical cable with air pipe OE206B
OE206B cuttin diagram
OE206B cuttin diagram





technical specification

Items Specification
Products name
ModelOE206B
Conductor MaterialTinner Copper
 Specification19/0.127TC
 Insulation MaterialTPEE
 Nom.Thickness0.15
 Nom.O.D.ø0.95士0.05
 ColourGreen/Yellow/Gray/Pink/White/Brown
Trachea MaterialPU
 Nom.I.D.ø2.6士0.05
 Nom.O.D.ø4.0士0.05
ColourBlue
WrapMaterialPTFE Tape
 Filler MaterialContton Thread
 Shield MaterialTinned copper
 Specification24*9/0.10TC
 Coverage>90%
WrapMaterialUnwoven Cloth
 Jacket Material4766 TPU
 Nom.Thickness0.88
 Nom.O.D.ø8.3士0.20
 ColourGray

More 6 core shielded cable for option

The 6 core shielded cable we provided has different structures,forms for options.Partial shielded or overall shielded and separate shielded for each core.

There are Round shape and Flat ribbon shape,so no matter what 6 core shielded cable you are sourcing,we believe there is an option for you.

ECG cable EC206S-002

Spiral shielded 6 core cable

.φ4.5mm,TPU Jacket,Spiral shield.28AWG*6C

6-LEAD SHIELDED RAW MEDICAL ECG CABLE EC206S-001

Each core separate shielded

ø4.40,not only EMC shieled,also a Low Triboelectric noise cable (noise value less than 50 uv,about 25-30uv)

6 core shielded spo2 cable SP206B-003

6 core shielded cable with 1 pair STP

ø5.5mm OD,TPU Jacket,overall out shielding and separate shield for the 1 STP

6 Flat Riboon cable each wire separate shielded

ø3.25*6C.Conductor :7/0.23+200D KEVLAR.Each wire with spiral shielding.It is a typical 6 core shielded cable with good low noise performance

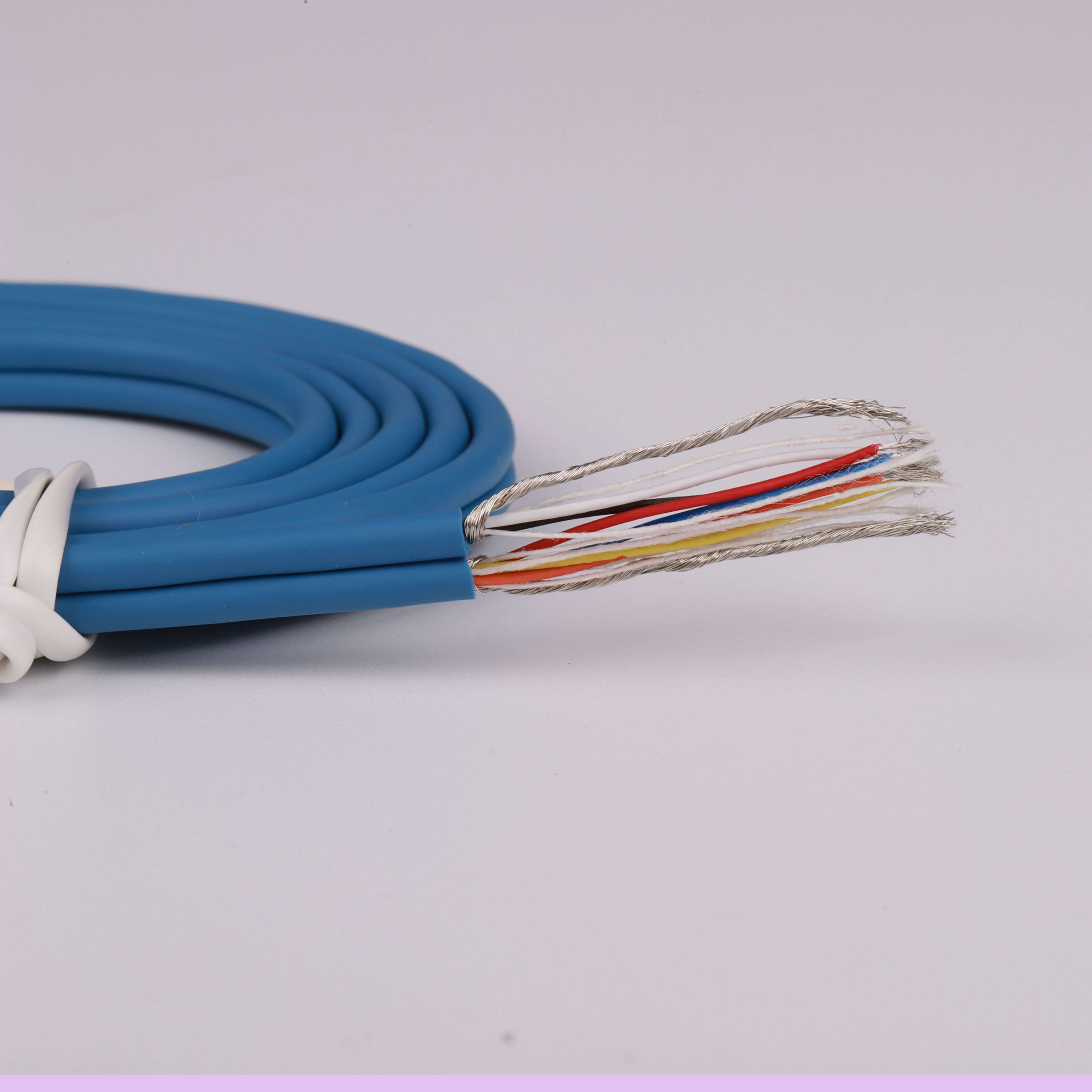

6 core spiral shielded spo2 cable SP206S-001

2 Flat ribbon 6 core shielded cable

ø2.50mm*2F,TPU Jacket,28AWG wire,STP separate from the other 4 cores.Usually for SPo2 purpose.
